Products Textile Division Mega Steamer Machine

Mega Steamer Machine

List

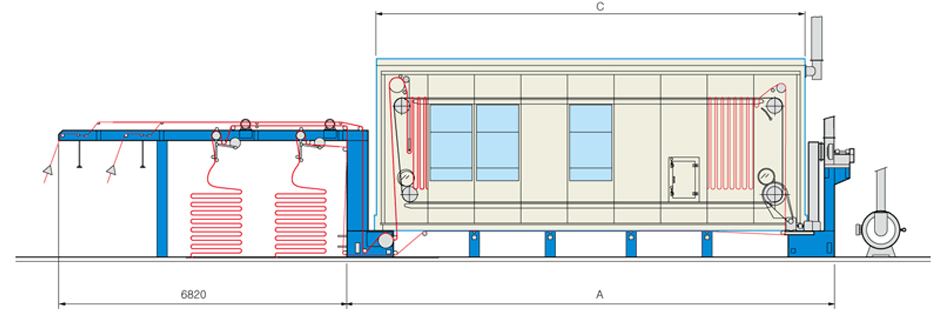

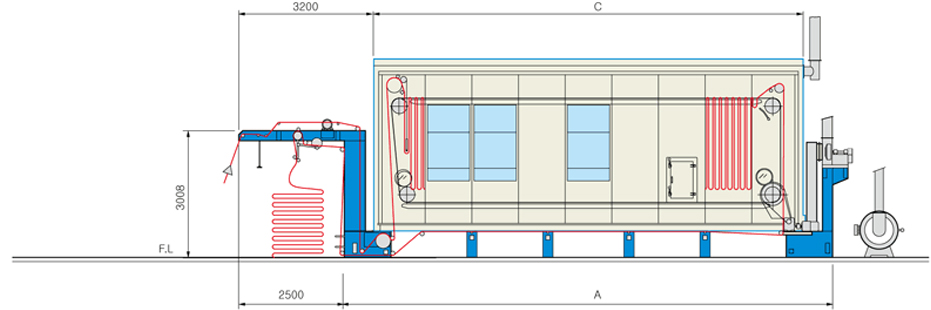

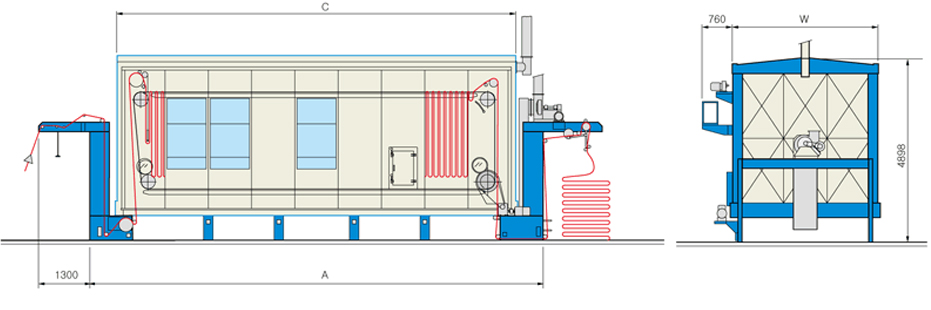

Dimension

Detail

[ STANDARD ]

[ PLAITING 2 DEVICES ]

[ REAR PLAITING DEVICE ]

Specifications

Type Fabrics capacity Roller width Working speed Productivity
MS-S120 120m x 1(Line) 2100mm 4~21m/min 240~1260m/hr
MS-D120 120m x 2 2850mm 4~21m/min 480~2520m/hr
MS-L120 120m x 2 3500mm 4~21m/min 480~2520m/hr
MS-S150 150m x 1 2100mm 5~25m/min 300~1500m/hr
MS-D150 150m x 2 2850mm 5~25m/min 600~3000m/hr
MS-L150 150m x 2 3500mm 5~25m/min 600~3000m/hr
MS-S200 200m x 1 2100mm 7~30m/min 420~1800m/hr
MS-D200 200m x 2 2850mm 7~30m/min 840~3600m/hr
MS-L200 200m x 2 3500mm 7~30m/min 840~3600m/hr
MS-S250 250m x 1 2100mm 8~36m/min 460~2160m/hr
MS-D250 250m x 2 2850mm 8~36m/min 920~4320m/hr
MS-L250 250m x 2 3500mm 8~36m/min 920~4320m/hr
MS-S300 300m x 1 2100mm 10~45m/min 600~2700m/hr
MS-D300 300m x 2 2850mm 10~45m/min 1200~5400m/hr
MS-L300 300m x 2 3500mm 10~45m/min 1200~5400m/hr
MS-S350 350m x 1 2100mm 12~50m/min 720~3000m/hr
MS-D350 350m x 2 2850mm 12~50m/min 1440~6000m/hr
MS-L350 350m x 2 3500mm 12~50m/min 1440~6000m/hr

* Move left and right

Width(mm) Length(mm)
Type W Type A C
MS-S 2800 MS-120 7140 5750
MS-D 3700 MS-150 8250 6850
MS-L 4360 MS-200 9350 7950
    MS-250 11560 10160
    MS-300 13770 12370
    MS-350 14870 13470

* MS machines are constantly improving, therefore, we have the right of that specifications are subject to change without notice.

* Move left and right

Remarks

Application

  • Low temp. operation(100~107℃) : Cotton, Rayon, Silk, Wool, Acryl, Nylon
  • High temp. operation(170~185℃) : Polyester and synthetic fabrics

Comment

  • MS-S (72inch x 1 line) S=Single line
  • MS-D (44inch x 2 line) D=Double line
  • MS-L (60inch x 2 line) L=Large width=Favrics loading capacity in chamber
