Textile Division
Mega Calender Machine
Mega Calender Machine
List
Features

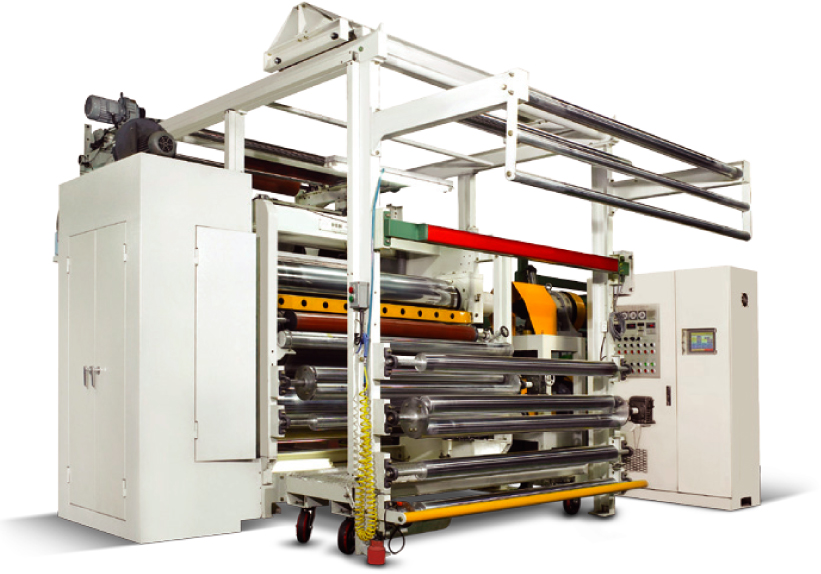

- This multi-purpose Calender machine is for high gloss of fabric.
- You can easily operate and change rotation speed of Top & Bottom roll by computer in machine.
- It is widely available as a multi-purpose Calender processing as well as high-gloss fabric Calender, Cire, etc. If you change upper steel roll to Schreiner roll, it can be used as Schreiner Calender also.

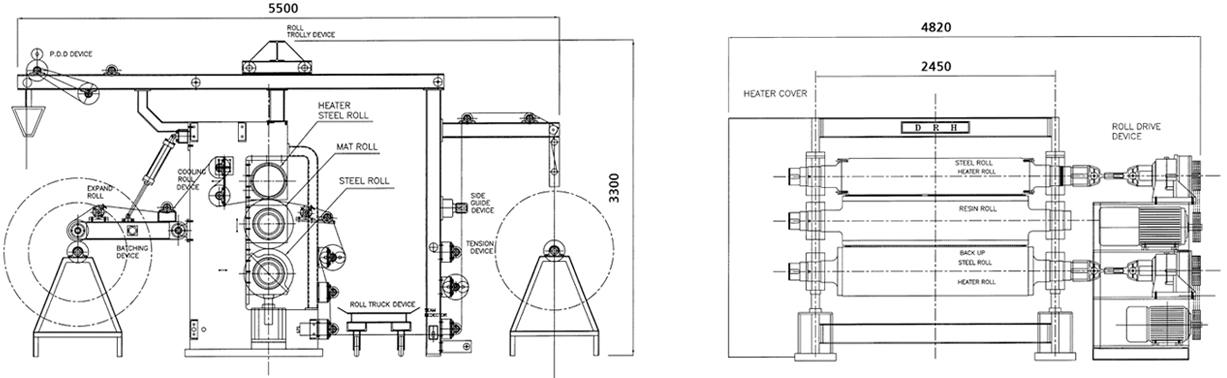

Dimension
Specifications
| Model No : MC-CF-3B-60 | ||||||
|---|---|---|---|---|---|---|
| Roll Spec’ |
Top | Steel Roll 370￠ | Hyd’ Pressure | 50 Ton Max | Bottom Roll Drive | 30 Kw |
| Middle | Resin Roll 530￠ | Temperature | 200℃ Max | Heater | 32 Kw | |
| Bottom | Steel Roll 500￠ | Heating Method | Electric (Tube Heater) | Hyd’ Pump | 3.7 Kw | |
| Roll Width | 1,900 mm | Working Width | 1,600 mm | Other Power | 5 Kw | |
| Line Speed | 60 M/Min Max | Main Roll Drive | 37 Kw | |||
* Move left and right
