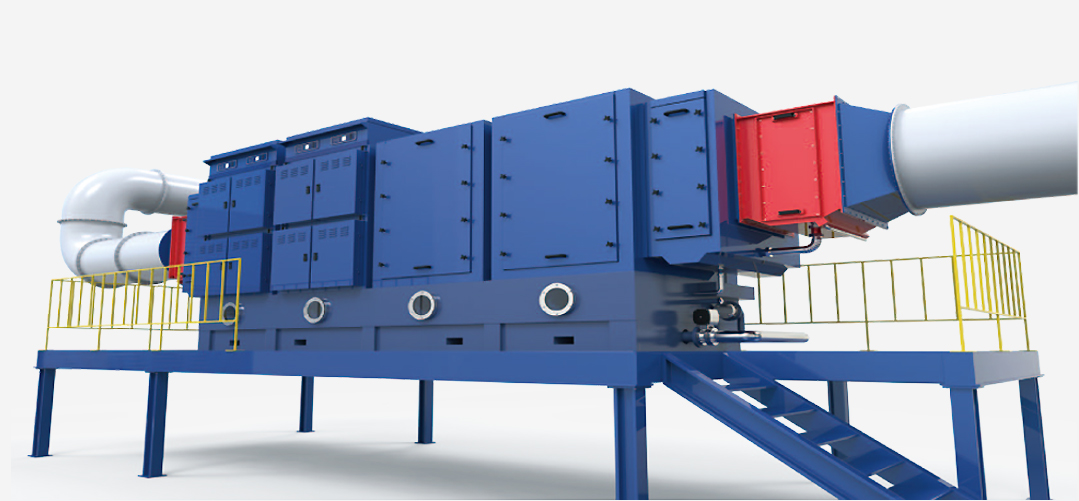

Mega Plasma
Mega Plasma
List
Features
- Dust Collection efficiency is 95% or above.
- Collection performance is 0.1 μm or less of fine particles.
- Tolerance of exhausted gas temperature is wide(100~240℃)
- Adapted self-cleaning system for easy maintenance & improved durability leads high efficiency of device.
- Adapted auto-fire protection system to protect fire.
- Applied to various industry machines like Stenter, PVC coating, etc.

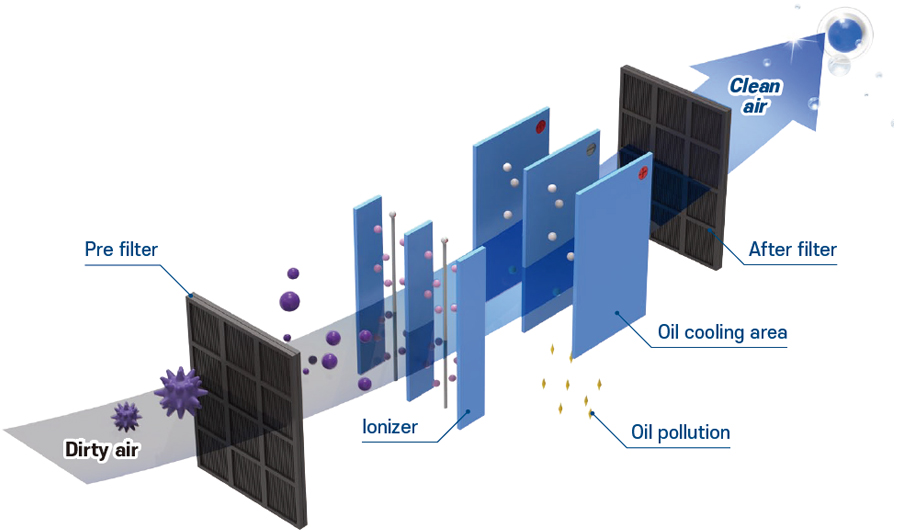

The principle of operation of the electrostatic precipitator

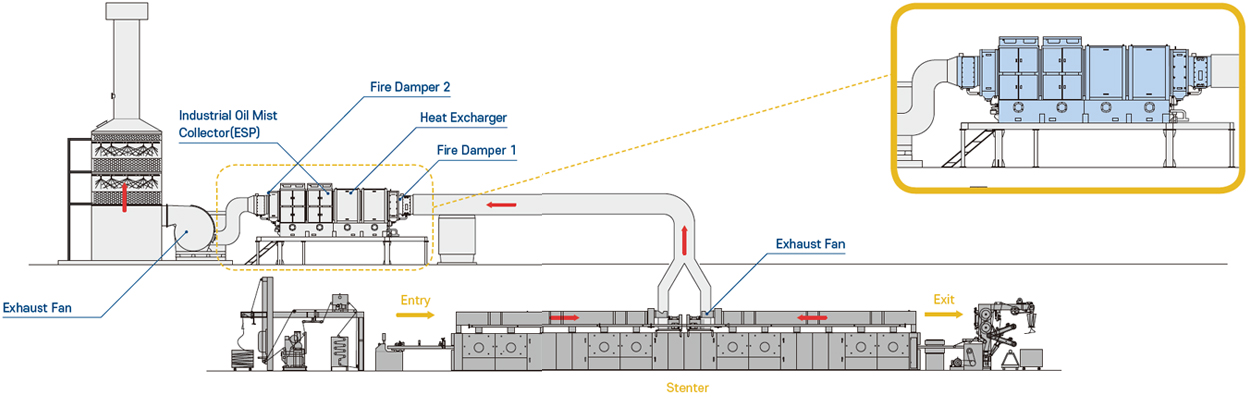

MEGA PLASMA applicable to various industry machines (Stenter, Coating,
Artificial leather, Glove, Wallpaper, Plastic flooring machine, etc)
Artificial leather, Glove, Wallpaper, Plastic flooring machine, etc)
- This purifier is used to remove harmful fume from exhausted hot air.
- This device is designed for purifying polluted exhaust air, using electric field generated ESP system.
- High voltage DC power is applied to the DE to form an electric field and to generate corona discharge. ESP stands for Electrostatic Precipitator. DE and CE stand for Discharge Electrode and Collecting Electrode (or Collecting Plate), respectively. When passing between DE and CE, the dust in the flue gas is charged by the negative ion, and attracted and collected to the positive pole of CE.
- It can be applied in various industrial machines such as spinning, dyeing, tenter machine, pvc coating, artificial leather machine, glove, wallpaper, plastic flooring, etc
전기 집진 과정
- Exhaust gas (Temp 100~240℃) through connected duct reached at pre-filter. Fire shut-down damper installed at pre-filter device.
It operate to protect device when fire is occurred in the duct. - Exhaust gas through reducer pipe, is filtered at pre-filter and spray device before heat exchanger.
- Heat exchanger system make the temperature of gas down into 60oC. (Temperature can be set by controller)
- Cooled exhaust gas by heat exchanger entered electrostatic precipitator(ESP system).
ESP system is consisted of 4 stage. The oil separated at exhaust gas is flowed out to the outlet. - Purified air by ESP system is discharged by Exhaust fan.
- MEGA PLASMA is equipped with a self-cleaning system. When the cleaning time is needed, signal lamp turned on the touch screen, and the operator can activate the self-cleaning course.
It is consisted of water tank, washing pump, washing valve, spray device and control system. - Accumulated dust or oil sludge inside of Electrostatic precipitator badly affects the efficiency of device.
It is important regular cleaning procedure according to working materials. It is available to use automatic cleaning system. - MEGA PLASMA adopted firefighting system. It can protect the system unit against fire.
Dimension
